Features:
Working temperature: -20-60 ℃
Supply voltage: DC12V
Output Power：144W
Product size: L105ΧW65ΧH25mm
Gross weight:145g
Output: Three CMOS drain- open output
Connecting Mode: Common anode
Max load current: 4 A each color
Wiring Diagram

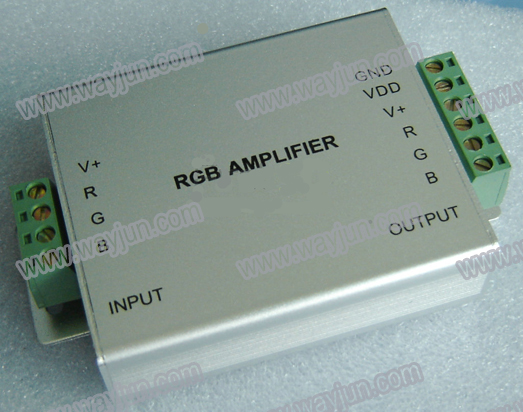

When wiring, please follow the product "INPUT" "OUTPUT" terminal identity wiring.
"INPUT" port, when connect to a LED light need a enlarged signal source,
"OUTPUT" port connected to the load output.
Note: the black wire in the DC power supply plug connected to the power of the cathoad,the
red wire to connect to the anoade.
